| 起源の場所: | 中国 |
| ブランド名: | JSSHG |
| 証明: | ISO9001 |
| モデル番号: | CNJS |
| 最小注文数量: | 1セット |
|---|---|
| 価格: | dollar |
| パッケージの詳細: | 木製ケース |
| 受渡し時間: | 20 |
| 支払条件: | T/T |
| 供給の能力: | 200 |
0.8 % NaCIO Split Sodium Hypochlorite Generator with Long Life Service
Principle:
CNJS - L series NaClO generator is a new type of NaClO solution for field production equipment , suitable for all kinds of needs NaClO disinfected venues. Its working principle is:
the main role of sodium hypochlorite disinfection is through its form hypochlorous acid hydrolysis, hypochlorous acid further break down to form new ecological oxygen [O] , new ecological oxygen strong oxidizing substances such as bacteria and virus on the protein denaturation, which kill pathogenic microbes .
Second, hypochlorous acid in the process of sterilizatio n, kill the virus, not only can be applied to the cell, the virus shell, and for small hypochlorous acid molecules , without charge, also can penetrate the bacteria (virus) in the body, and bacteria (virus) protein , nucleic acid and enzyme oxidizing reaction of organic polymer, so as to kill the pathogenic microorganisms .
Again , hypochlorite produced chlorine ion can significantly change the bacteria and virus, the osmotic pressure of the body, make the loss of activity and cell death
Electrode reaction:
anode:2Cl--2e→Cl2
cathode:2H++2e→H2
Solution:2NaOH+Cl2→NaCl+NaClO+H2O
Technical parameters:
| Type | Power(V/Hz) | concentration of liquid(mg/l) | available chlorine (Kg/h) | Flow (m3/h) | Salt consumption (kg/d) | Water consumption (m3/d) | Power consumption (kw) | Size(m) (l×w×h) | |
| CNJS-L5000 | 380V/50Hz | 7-9 | 5 | 0.5 | 336 | 12 | 20 |
|
Work flow chart :
Product system:
A, Automatic dissolving salt tank :Including salt tank , liquid level control , dissolving salt pump , electric valves , piping and other components which could automatic transmission salt , dissolving salt , saturated brine
B,Saturated brine filter :Including stainless steel two precision filter ,primary filtering accuracy 50um, secondary filtration precision 5um, use PP filter , the filter can be easily replaced, ensure clean brine ;
C, Dilute brine tank :The saturated brine and production water has been diluted with 2.5 % weak brine water , for the power solutions

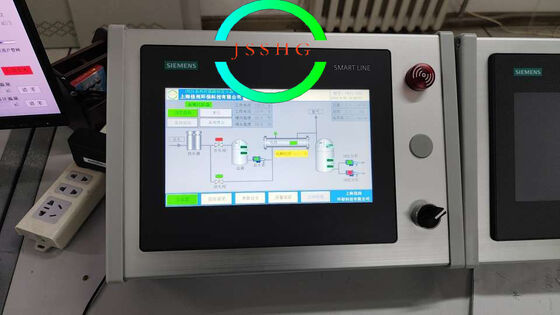

D, Sodium hypochlorite generator host machine :Including electrolytic cell , electrolysis power , intelligent control center PLC , the control element, man-machine interface , PC communication module, the operator panel, the host stand, electric valves, electrical power distribution system
E, Sodium hypochlorite solution storage tank :including hydrogen storage tank , exhaust equipment
F, Automatic dosing and on-line monitoring system: including the inverter , corrosion metering dosing pump , online residual chlorine monitor , and the closed-loop control of chlorine
G, Online instrument series : Production water pressure monitoring , dilute brine online salinity monitoring , temperature controller , flammable gas monitoring sensor , these monitoring instruments are all included alarm signal output
Advantage of on-site sodium hypochlorite generator
| SAFETY: | Material safety: Salt, Water and Electricity as raw materials, no need for transportation of dangerous chemicals; Process safety: No risk of chlorine leakage and reactor explosion, safety for operator; Product safety: Product-0.8% NaCIO solution, has the advantage of stable and safety, cost effective in operation and no attenuation in storage. |
|
| ENERGY-SAVING: | Make use of electricity in the off-peak period to generate the NaCIO solution. | |
| ENVIRONMENTAL PROTECTION: |
Avoid of usage, transportation of dangerous chemical material.High current efficiency ,few by-product, safe H2 ventilation. | |
| ECONOMY: | JIAYU equipment can largely reduce the operation cost compared to the bulk hypochlorite |

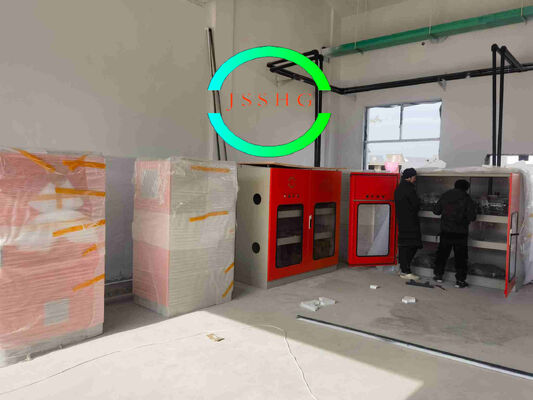

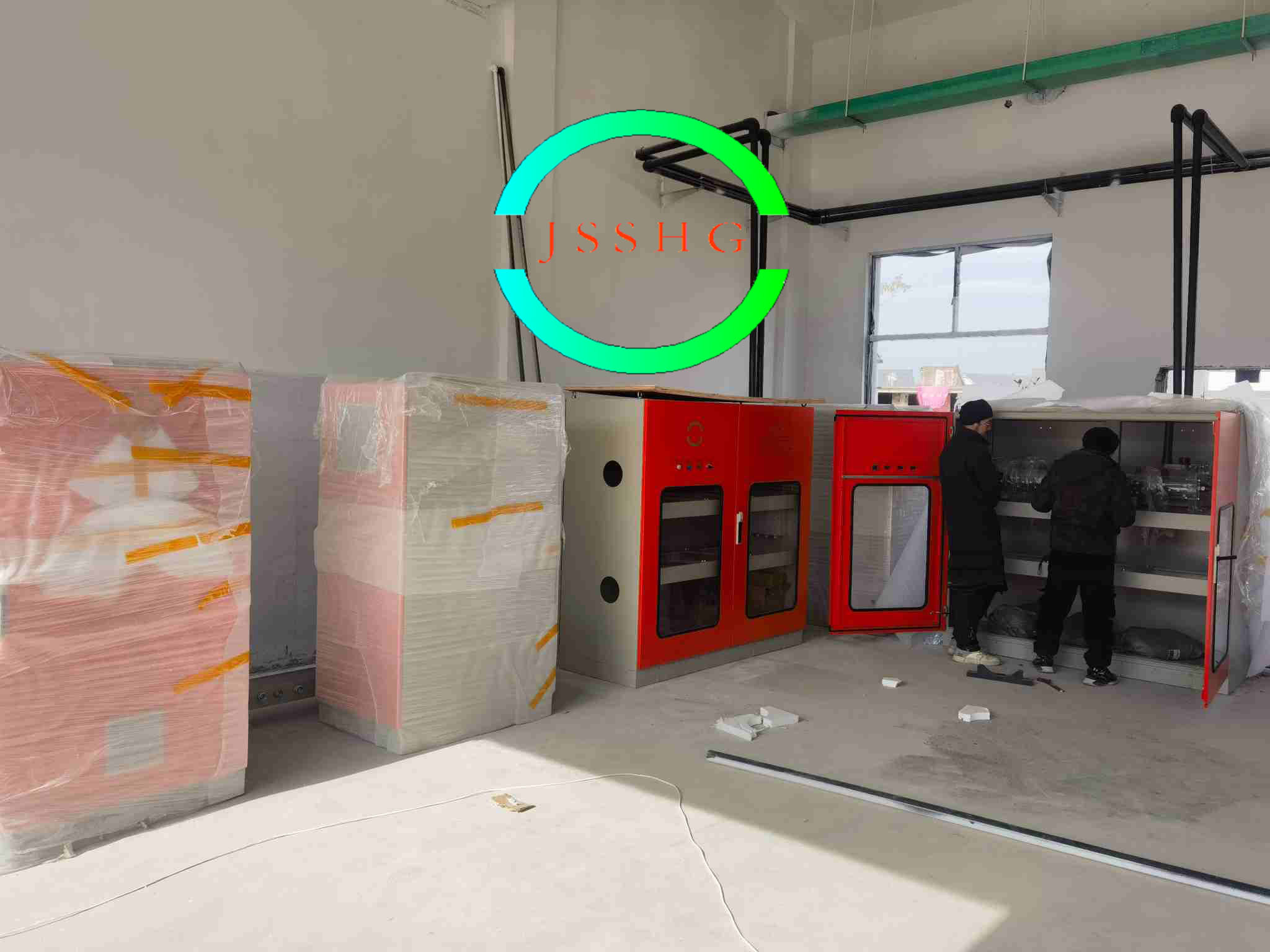

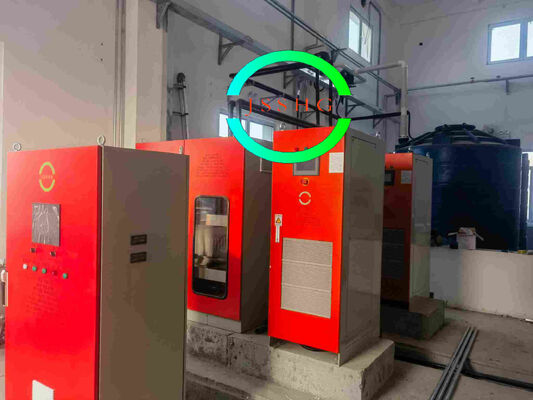

workshop :
